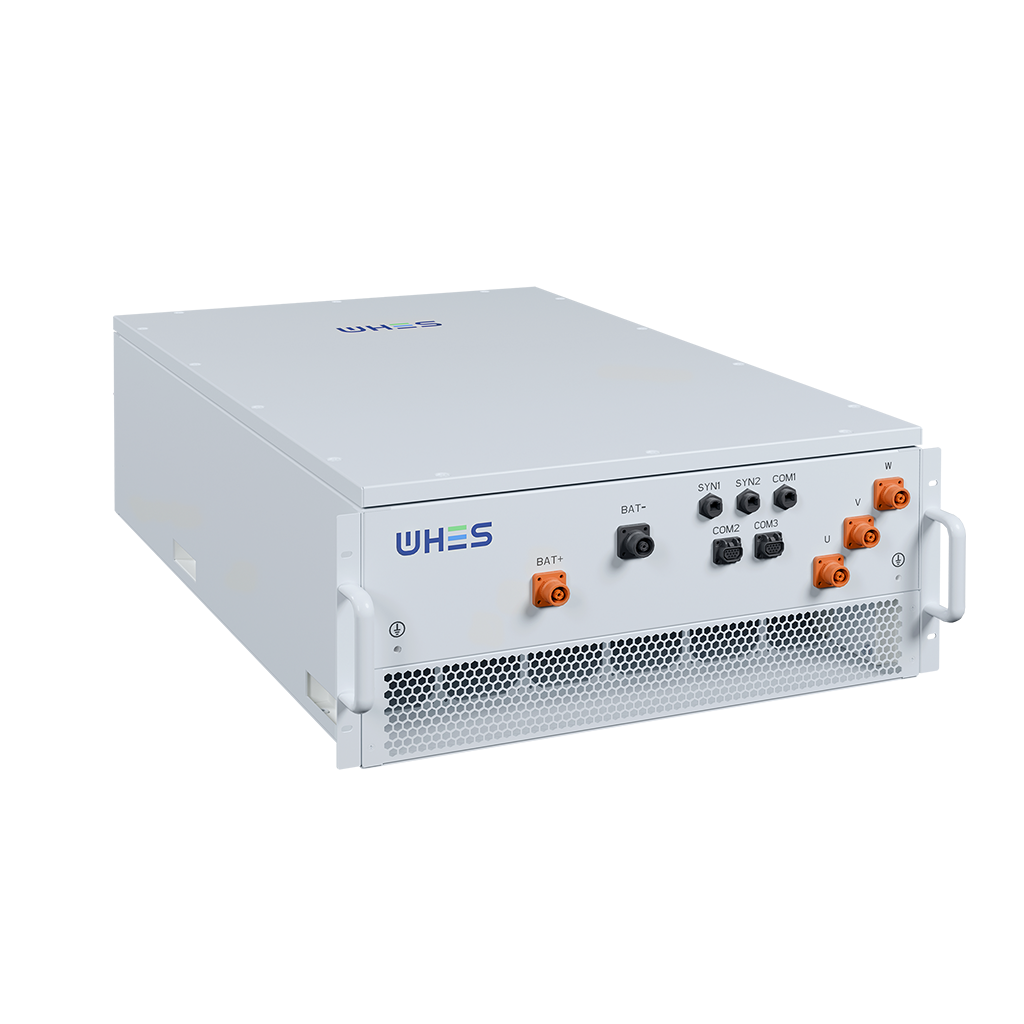

PCS
Power Conversion System
125-215kW

datasheet

Product Inquiry

Features

High Efficiency

Three‑level topology, up to 99% conversion efficiency with minimal loss.
Supports 1500Vdc battery systems for higher system efficiency.

Intelligent Control

Cluster‑level precise management and capacity control.
Full four‑quadrant operation with fast active & reactive power response.

Flexibility

Modular design for easy installation and maintenance.
Strong grid adaptability with high/low voltage ridethrough (HVRT/LVRT).

Safety

NEMA 4 protection, optimized thermal design for extreme environments.

Technical Specifications

TAA-125kW-480(US)

TAA-135kW-480(US)

TAA-145kW-480(US)

TAA-150kW-480(US)

TAA-125kW-600(US)

TAA-150kW-600(US)

TAA-165kW-600(US)

TAA-175kW-600(US)

TAA-186kW-690(US)

TAA-205kW-690(US)

TAA-215kW-690(US)

AC Rated Power

125kW

DC Voltage Range

800~1500V

Max. DC Current

153 A / 160 A

Ingress Protection

IP65

Dimensions (W*D*H)

25.59*11.61*37.4 in (650*295*950) mm

PV Max. Efficiency

99%
