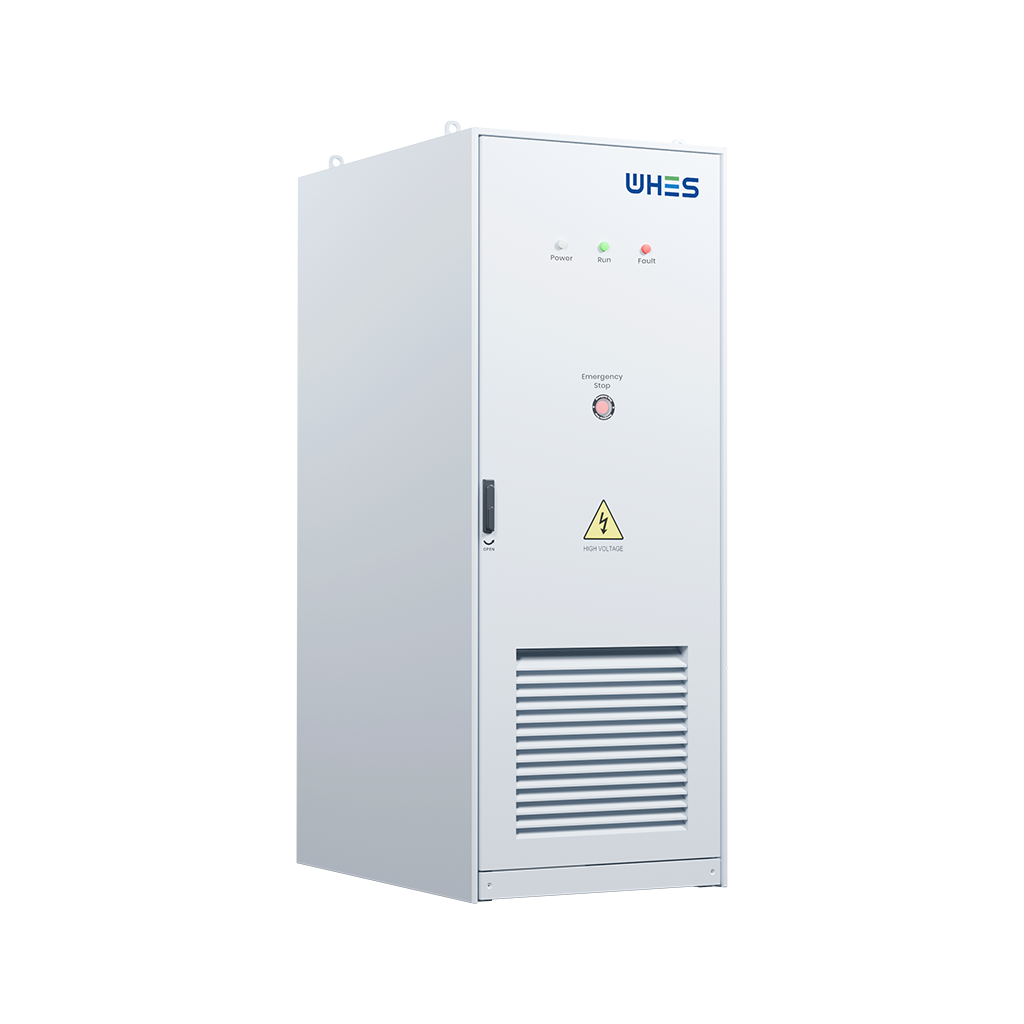

AC Control Cabinet<br>135-270kW
Features
High Efficiency & Grid Compatibility
- 113°F full performance, without derating.
- No derating up to 3,000 m altitude.
- Peak efficiency up to 99% (PCS).
Safety & Reliability
- NEMA 3 system protection.
- NEMA 4 PCS protection.
- C5 anti‑corrosion design.
- Reliable operation in harsh environments, 365 days a year.
Easy O&M
- Factory pre‑integrated, plug‑and‑play installation, quick on‑site commissioning.
- Flexible expansion supports up to 24 PCS in parallel.
Technical Specifications
AC-135kW-1B10
AC-270kW-2B10
AC Rated Power
130kW
DC Voltage Range
780...113.8V
Rated Voltage AC
3W+PE, 480V
Ingress Protection
NEMA 3 (IP55)
Dimensions (W*D*H)
51.18*39.37*92.52 in (1350*1000*2350) mm
Cooling Method
Smart Air Cooling
Operation Temperature
-13°F...+140°F (derating@>113°F) -25°C...+60°C (derating@>45°C)
