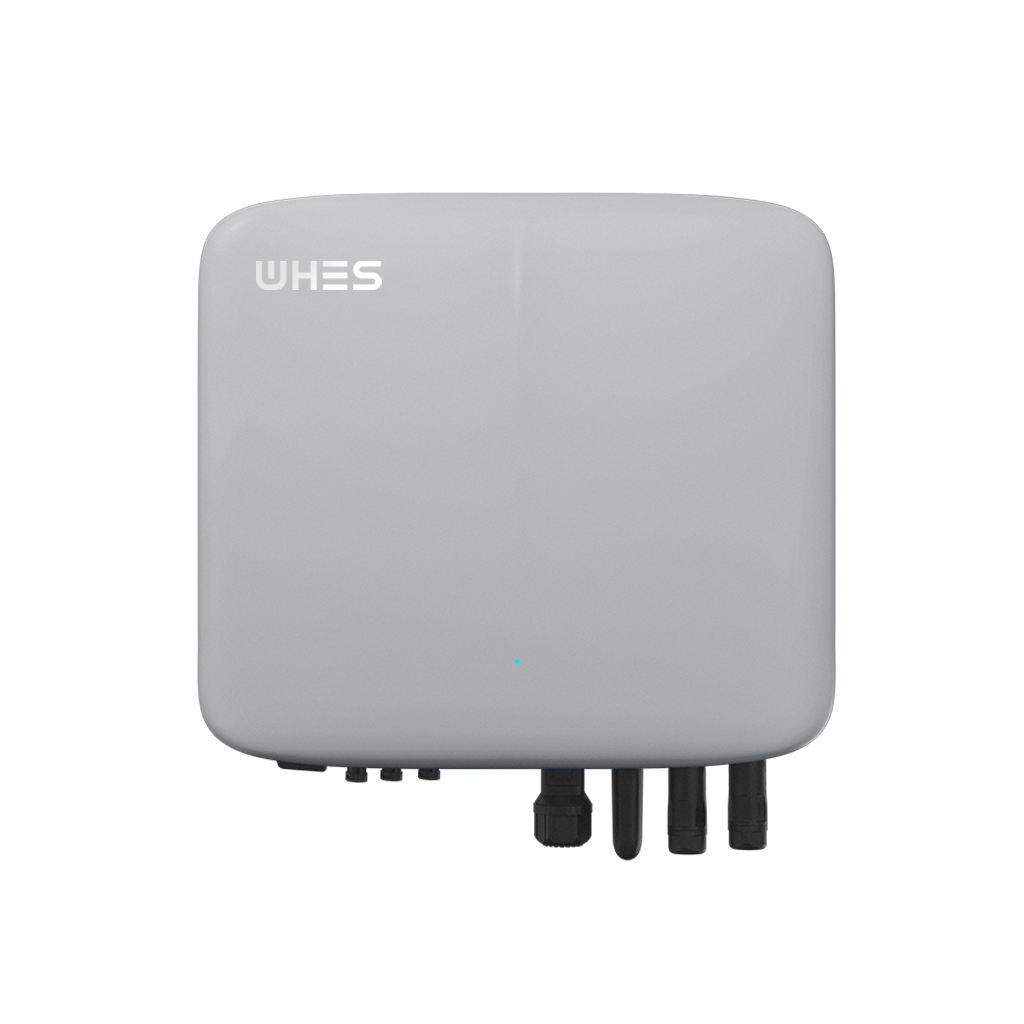

Hybrid Inverter5-13kW Three-Phase
Small in size, Big on power.
WHES three phase hybrid inverter for residential and light commercial solar installations - delivering 5–13kW output with up to 110% unbalanced load support, battery compatibility, and smart energy management in a single wall-mounted unit.
Features
Powerful
- Max. 18A DC input current per string, compatible with 182/210 PV modules.
- Ultra‑wide MPPT voltage range captures every ray of light from dawn to dusk, maximizing energy collection.
Flexible
- Up to 110% three‑phase unbalanced output, increasing self‑use ratio and optimizing solar production.
- Max. of 5 units in parallel, offering a cost‑effective commercial solution.
Effective
- High charge/discharge efficiency, up to 98.5%/97.7%.
- Reduced energy loss between battery and inverter interaction.
Friendly
- <25dB, no noise pollution.
- IP65, indoor or outdoor application.
Technical Specifications
WH-THA502
WH-THA602
WH-THA802
WH-THA103
WH-THA123
WH-THA133
Max DC Input Power
7500W
NO. of MPP Trackers
2
NO. of Strings Per MPP Trackers
1
Max. Apparent Power to Grid
5000W
Maximum Output Current
8.1A
Maximum Current
16.2A
Battery Voltage Range
160~700V
Dimensions (W*D*H)
510*205*480mm
Operation Temperature
-25°C to 60°C
Ingress Protection
IP65
Noise Emission
<25dB
