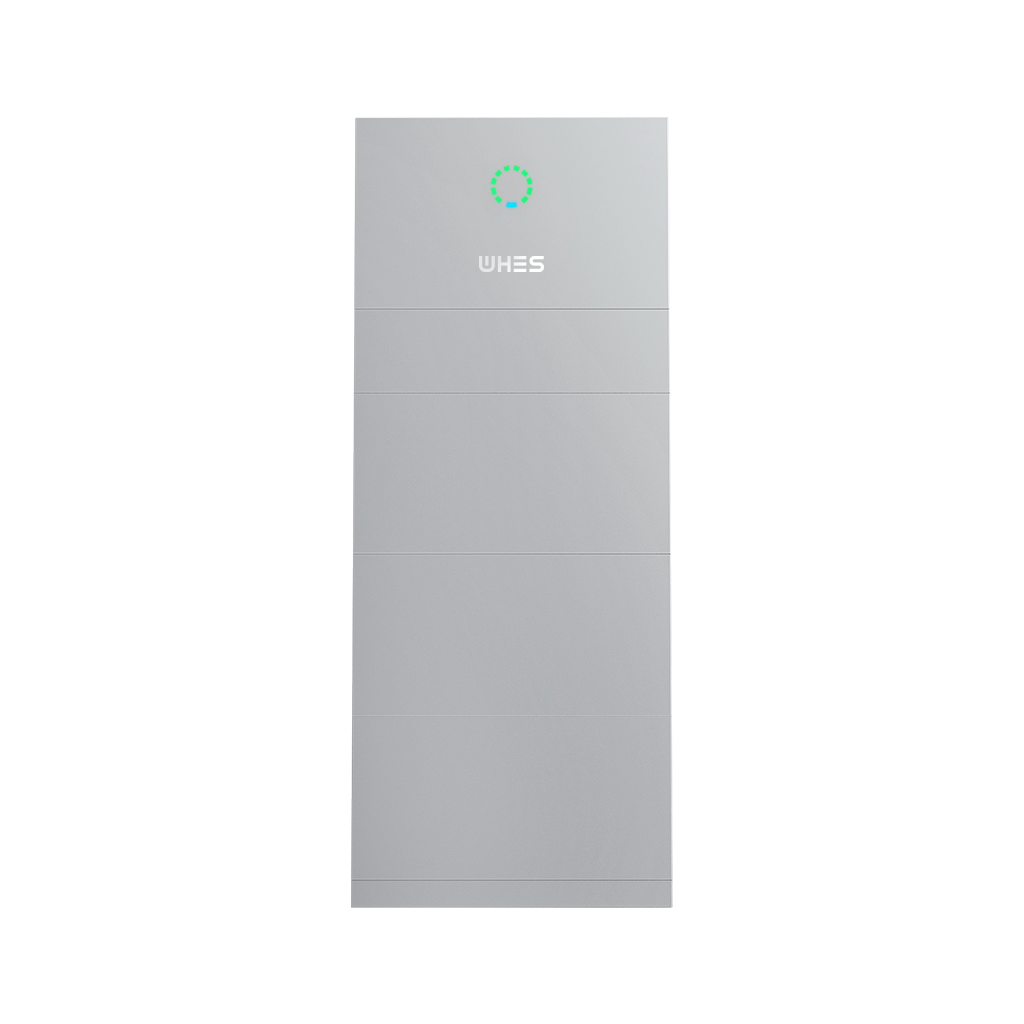

PP-S23.6-10kW/4.99kW-19.9kWh Single-Phase<br>Residential All-In-One Energy Storage System
Powering bigger needs with ease.
From a compact 5kWh home battery to a powerful 20kWh battery storage system — scalable, silent, and solar-ready for every household.
Features
Convenient
- Built‑in meter function simplifies communication wiring.
- Integrated plug‑in terminal replaces manual wiring, saving 75% installation time between modules.
Flexible
- 4.99 kWh per battery module, up to 4 battery modules for a single unit.
- Supports up to 5 units in parallel.
Safe
- Four‑layer protection design, including built‑in fire suppression system.
- Support AFCI.
- UL‑certified battery modules for enhanced safety.
Friendly
- Supports optional intelligent heating module, providing a wider operating temperature range.
- <25 dB, no noise pollution.
Technical Specifications
SIA-3.6kW Series
SIA-4.6kW Series
SIA-5kW Series
SIA-6kW Series
SIA-8kW Series
SIA-10kW Series
Max DC Input Power
7200W
NO. of MPP Trackers
2
NO. of Strings Per MPP Trackers
1
Max. Apparent Power to Grid
3600W
Battery Capacity
4.99-19.9kWh
Switch Time
<10ms
Dimensions (W*D*H)
600*350*1800mm
Operation Temperature
-20°C to 55°C
Ingress Protection
IP65
Noise Emission
<25dB
Download
datasheet
User Manual
