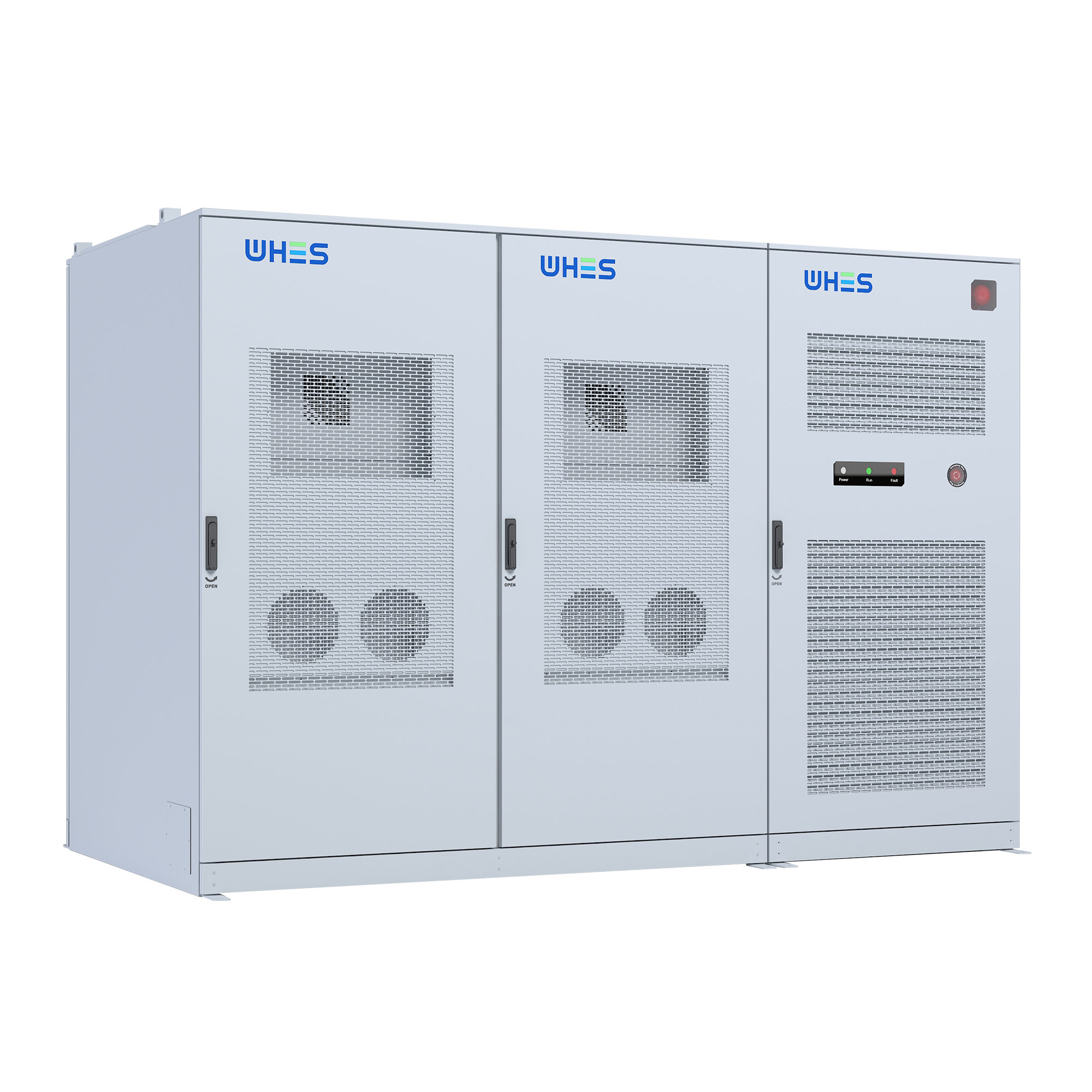

PC-G2 250kW/509kWhC&I Energy Storage System
Always On, Energy for All
WHES PC-G2 is a VDE 4110-certified modular ESS from 62.5kW to 250kW/500kWh. Flexible 0.5C/0.25C/0.125C discharge rates and CATL 306Ah LFP batteries make it a reliable industrial and commercial energy storage system for peak shaving, solar storage, and frequency response across diverse C&I energy storage scenarios.
Features
Flexible
- Modular AC/DC design, 2/4/6/8h flexible configurations
- Up to 6 units in parallel, 1.5MW / 3MWh total capacity
Superb
- CATL 306Ah battery packs with UL9540A certified
- VDE 4110 certified
- Supports peak shaving, dynamic expansion, fast frequency response
Safe & Reliable
- IP67 (battery pack) / IP55 (battery cabinet) / IP65 (PCS)
- 3‑layer fire protection *2 (detection, suppression, isolation)
User-Friendly
- Patent wall‑mounted liquid cooling & auto‑fluid refill
- <65 dB low‑noise operation
62.5–250kW/509kWh
DC Battery Cabinet, 2 Racks, 509 kWh
AC PCS Cabinet, 4 PCS, 62.5-250 kW
2/4/6/8h Solution
Flexible configurations for dynamic needs
User-Friendly
Patent wall-mounted liquid cooling & auto-fluid refill
reduce O&M time
Technical Specifications
IA-250kW/500kWh-DA10
AC Rated Power
250kW
Battery type
LFP , 3.2 V / 306 Ah
System Capacity
509 kWh ( 50.92 kWh * 5 * 2 )
Dimensions (W*D*H)
1940*1500*2100mm(Battery Cabinet) 1000*1500*2100mm(PCS Cabinet)
