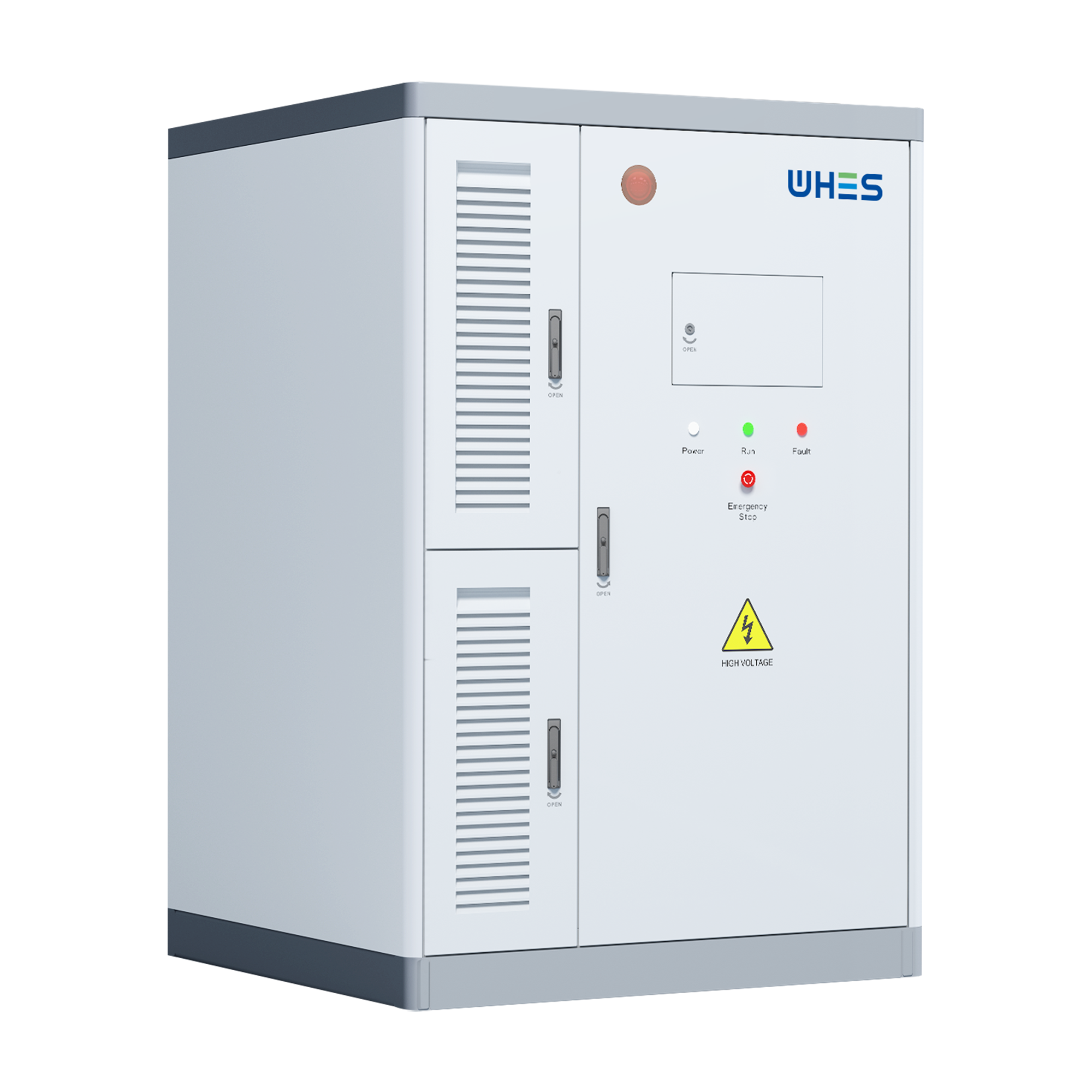

PC-G1 100kW/233kWhC&I All In One Energy Storage System
Smart Power, Built to Last.
PC-G1 100kW / 233kWh - a fully integrated all-in-one energy storage system with CATL 280Ah LFP battery modules, intelligent liquid cooling, and built-in EMS. Pre-assembled for fast installation, globally certified as a proven commercial battery storage system across 50+ industries worldwide.
Features
Economical
- Highly integrated all‑in‑one energy storage system - PCS, battery, BMS, EMS unified in one cabinet
Safe
- IEC 62933, UL9540A certified.
- Four‑level protection (Pack‑Rack‑PCS‑System), independent MSD.
- Smoke & heat detectors; audible & visual alarm; aerosol suppression.
“I'm absolutely confident in the safety of WHES products; they have obtained comprehensive certifications.”
——from Anonymous EPC
All-in-One Systems & Services
Integrates BMS, EMS, HV Box, CATL battery packs, liquid cooling, and PCS into a single cabinet - making this all-in-one energy storage system as simple to operate and maintain as it is powerful.
Pre-assebled CATL Battery Modules
Factory-built and ready to connect - accelerating delivery and cutting deployment timelines for any all-in-one battery system without compromising quality or safety.
Technical Specifications
WH-TIANWU-100-233B
AC Rated Power
100kW
Battery type
LFP , 3.2 V / 280 Ah
Battery Capacity
233kWh
Rated Voltage DC
832V
Ingress Protection
IP55
Dimensions (W*D*H)
1400*1350*2100mm
Cooling Method
Air cooling (PCS) / Liquid cooling (Battery)
