PC-mini 29.9-50kW/57-100kWhC&I Hybrid Energy Storage System
C&I Solar Energy Storage Cabinet for Peak Shaving, Microgrids & Backup Power

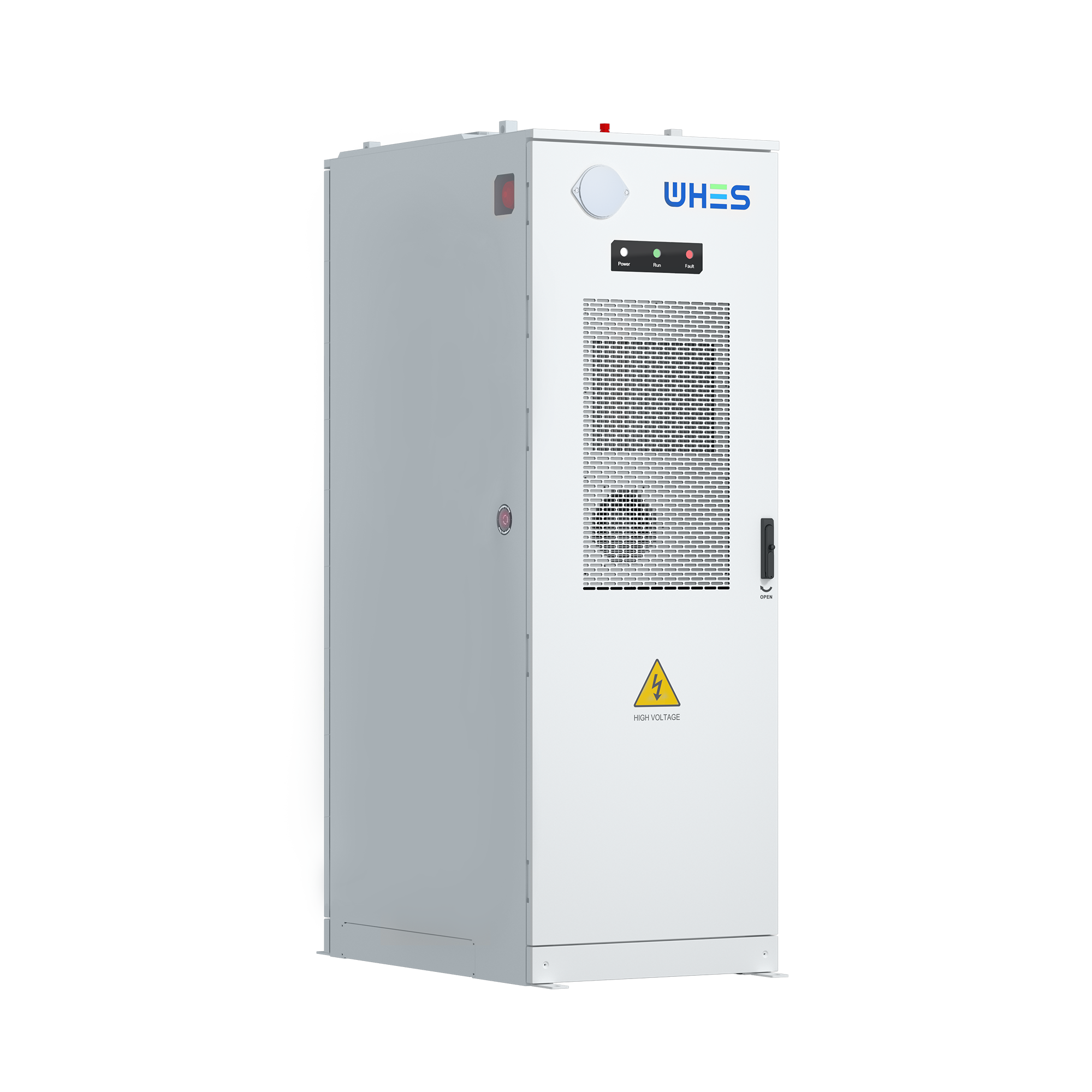

The PC mini 29.9-50kW / 57-100kWh is a fully integrated battery energy storage system with a hybrid inverter - delivering up to 50kW output and 100kWh capacity in a single pre-wired cabinet, ready for on-grid, off-grid, and microgrid deployment across commercial, agricultural, and industrial sites.
Features
Superb
- 4 MPPTs for solar optimization
- <10 ms EPS switching
- Supports 100% unbalanced output, half‑wave and surge loads.
- 280Ah long‑life cells with 8000 cycles
Flexible
- Max. 2 Times Photovoltaic Oversizing
- Max. 20A PV input current per string
- Parallel operation of up to 6 units for both on‑grid and off‑grid scenarios
Safe & Reliable
- IP55 (Battery cabinet) / IP66 (Inverter)
- Four‑level active and passive fire protection
- Optional AFCI
User-Friendly
- High energy density (0.86㎡ footprint)
- No foundation required
- <65 dB low‑noise operation
Max. 20A PV input current per string
Supports mainstream PV modules: M10, G12, and G12R (182mm & 210mm).
0.86m² Compact Footprint (without inverter)
Scalability & Flexibility
Parallel connection of up to 6 PCS for both on-grid and off-grid scenarios.
< 10ms EPS switching for continuous power
On/off Grid seamlessly Switching
Ensures stable operation under complex power conditions.
Technical Specifications
IA-50kW/100kWh-EC10
IA-40kW/100kWh-EC10
IA-30kW/100kWh-EC10
IA-29.9kW/100kWh-EC10
Max. PV Input Power
96 kWp
Maximum Current
160 A (40 A * 4)
Battery type
LFP , 3.2 V / 280 Ah
System Capacity
57.34...100.35 kWh
Dimensions (W*D*H)
750*1150*2250 mm (without inverter) 1070*1150*2250 mm (with inverter)
