PC-G1(TIANWU) 50kW/233kWhC&I All-in-One Energy Storage System

datasheet
Product Inquiry

SMART POWER, BUILT TO LAST.

PC-G1(TIANWU) 50kW/233kWh All In One ESS, fully certified globally, pre-assembled with CATL battery modules for rapid delivery and fast installation.

Features

Economical

  • Highly integrated all‑in‑one design
  • Easy transportation and O&M

Safe & Reliable

  • IEC 62933, UL9540A certified.
  • Four‑level protection (Pack‑Rack‑PCS‑System), independent MSD.
  • Smoke & heat detectors; audible & visual alarm; aerosol suppression.
whes,product

“I'm absolutely confident in the safety of WHES products; they have obtained comprehensive certifications.”

——from Anonymous EPC

All-in-One Systems & Services

which integrates BMS & EMS, HV Box, CATL Battery Packs, Liquid Cooling System and PCS, simplifies operations and maintenance.
whes,products

Pre-assebled CATL Battery Modules

Not only accelerate delivery but also simplify the installation process, significantly cutting down deployment timelines.
whes,products
Technical Specifications

WH-TIANWU-50-233B

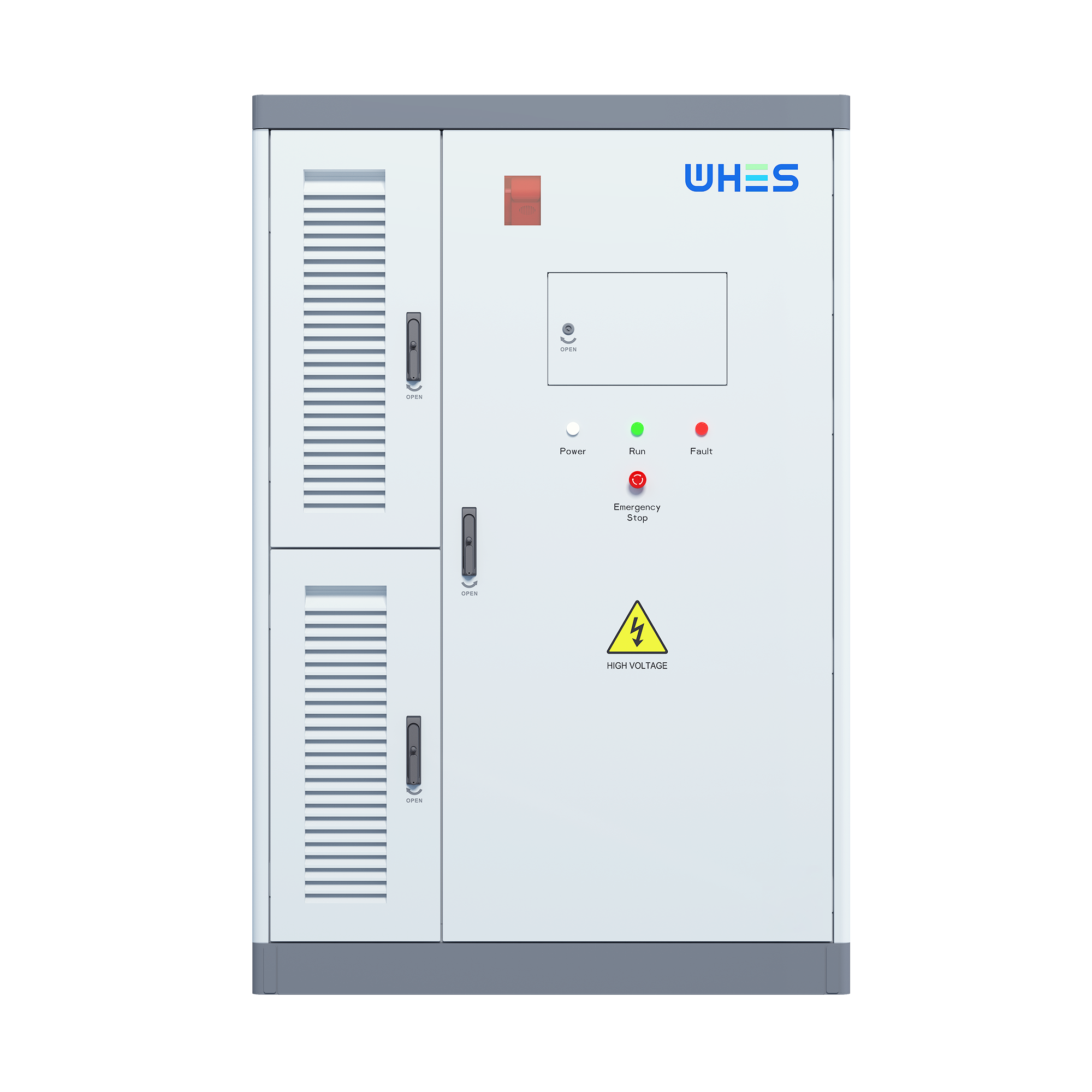

WHES PC-G1 commercial all-in-one BESS 100kW/233kWh
AC Rated Power
50kW
Battery type
LFP (CATL)
Battery Capacity
233kWh
Rated Voltage DC
832V
Ingress Protection
IP55
Dimensions (W*D*H)
1400*1350*2100mm
Cooling Method
Air cooling (PCS) / Liquid cooling (Battery)
Download
datasheet
User Manual
